ICOM
T10

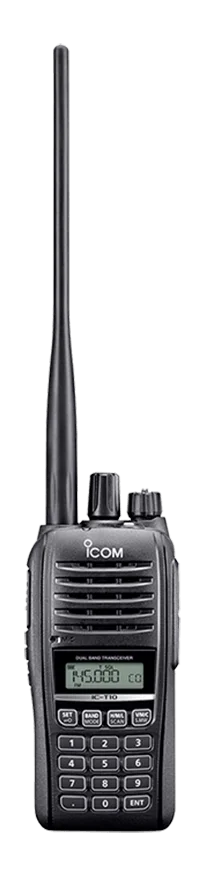

Rugged, Compact Dual Bander with Simple Operation and Great Performance
Designed with a high waterproof rating, the IC-T10 is a simple yet powerful dual-band handheld. It is ready for whatever field activities lie ahead. Clearly hear any transmission from other hams or the FM radio receiver with the loud 1500 mW speaker.
User Environment
Operating temperature
–20°C to +60°C
Mil spec
MIL-810 G
IP Standards
IP67 (Dust-tight and waterproof protection)
Physical Characteristics
Dimensions W x H x D (with standard battery)
2.1 × 4.4 × 1.2 in
Weight (with standard battery)
9.8 oz
Performance Characteristics
Frequency band:
TX: 144–148, 430–450 MHz
RX: 136–174, 400–479 MHz
FM broadcast: 88–108 MHz
Power Output:
5 W
Standard battery chemistry type:
Li-ion
Battery life (based on a 5-5-90 duty cycle):
Number of channels:
208 channels (including 2 call and 6 scan edges)
5W RF Output in 144 and 430 MHz
1500 mW Loud and Intelligible Audio
IP67 Dust-tight and Waterproof
Home Button on the Top Panel for Quick Access to Calling Channel
Optional HM-222HLWP, Loud Audio SP-MIC
FM Broadcast Receiver
Up to 11 Hours* Operating Time
* 11/10 hours (VHF/UHF, approx.) with BP-280 battery at 1:1:8 duty ratio (Power save ON)
Other Features
- DC power operation with optional AD-149H
- Free CS-T10 downloadable programming software
- Built-in CTCSS/DTCS for repeater operation
- Total of 208 memory channels with 6 character channel name
- 16 DTMF autodial memories
- Priority, Program, Memory, Skip, and Tone Scan
- Direct-conversion system eliminates IF stages
Brochures
Price List
- Amateur Radio Price List
(These are retail prices as of the date published. Call or contact us for your cost.)
No Accessories List at present
Please Contact Us for more information
