Kenwood
TKB-6900

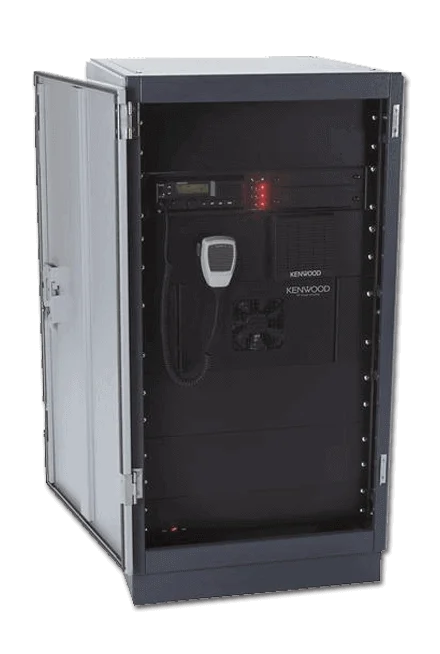

The KENWOOD TKB-6900 Series Low Band Base Stations are built around the TK-690 high-performance 110W radio. The TK-690 transceiver is mounted in a 2 RU enclosure which includes forced air cooling and option bays for two peripheral circuit boards. The basic configuration includes a 2-channel tone termination panel (2 or 4 wire audio). Equipment may be mounted in a cabinet enclosure or open rack and may be used either by itself (50W continuous duty or 110W at 20% duty cycle) or as a driver for an external continuous duty RF amplifier (100W or 300W).
User Environment
Operating temperature
-22 to +140F
Mil spec
NA
IP Standards
NA
Physical Characteristics
Dimensions W x H x D
NA
Weight (with standard battery)
NA
Keypad / Keys
No Keypad
Display
No Display
Performance Characteristics
Frequency Band:
Low Band
Frequency Range:
29.7 - 37.0 MHz, 35.0 - 43.0 MHz, 40.0 - 50.0 MHz
Power Output:
45 W to 110 W
Number of Channels/Groups/Zones:
160 Channels
Channel spacing:
N/A
- Power supply options include battery backup with integrated SmartCharger and Low Voltage Disconnect.
- Mounting options include 20 RU (42"") and 40 RU (77"") locking cabinets in addition to 17 RU (3') and 45 RU (7') open equipment racks.
- External connections are RJ-11 for phone line, DB-25 for access to the internal chassis bus, & type N-female for RF.
- T-R simplex antenna switching is included in the basic unit as well as in all external amplifiers.
